Precise and secure drone landings with a cradled platform.
Rapid 32-minute charging for uninterrupted missions.
IP55-rated, dustproof, and waterproof for all-weather use.
Third-party payloads for versatile missions, from photography to data collection.
Works with new drone models the Matrice 3TD and 3D
Ready to fly kit includes, DJI Dock 2, With Matrice 3D or 3TD, 3D/3TD Care Basic Ready to Fly Kit (1 3D Battery, 1 3D Charger, 1 RC Pro Enterprise Remote)
DJI M3D: Introducing DJI's First Survey Drone-in-a-Box Solution
Combine the DJI Dock 2 with the DJI M3D to create DJI's premier drone surveying system housed entirely in a box.
The DJI M3D comes equipped with both a telephoto and a wide-angle camera, featuring a mechanical shutter, designed specifically to handle 1:500 high-precision mapping tasks.
Wide-Angle Camera Specifications: Sensor: 4/3 CMOS / Focal Length: 24mm equivalent / Resolution: 20MP with mechanical shutter
Precision and Reliability: Equipped with an integrated RTK module, the DJI M3D achieves up to ±3cm positioning accuracy. Rated IP54, ensuring it is both dustproof and waterproof.
Extended Operational Capabilities: Offers up to 50 minutes of flight time and a maximum effective operating radius of 10km. Supports over 400 battery cycles for extensive use.
Enhanced Flight Safety: Features a comprehensive 6-directional obstacle sensing system for increased safety during operation.
Private Deployment With Cloud API: Tailor a customized management system for DJI Dock 2, quickly connect it to a third-party cloud platform, such as DroneDeploy.

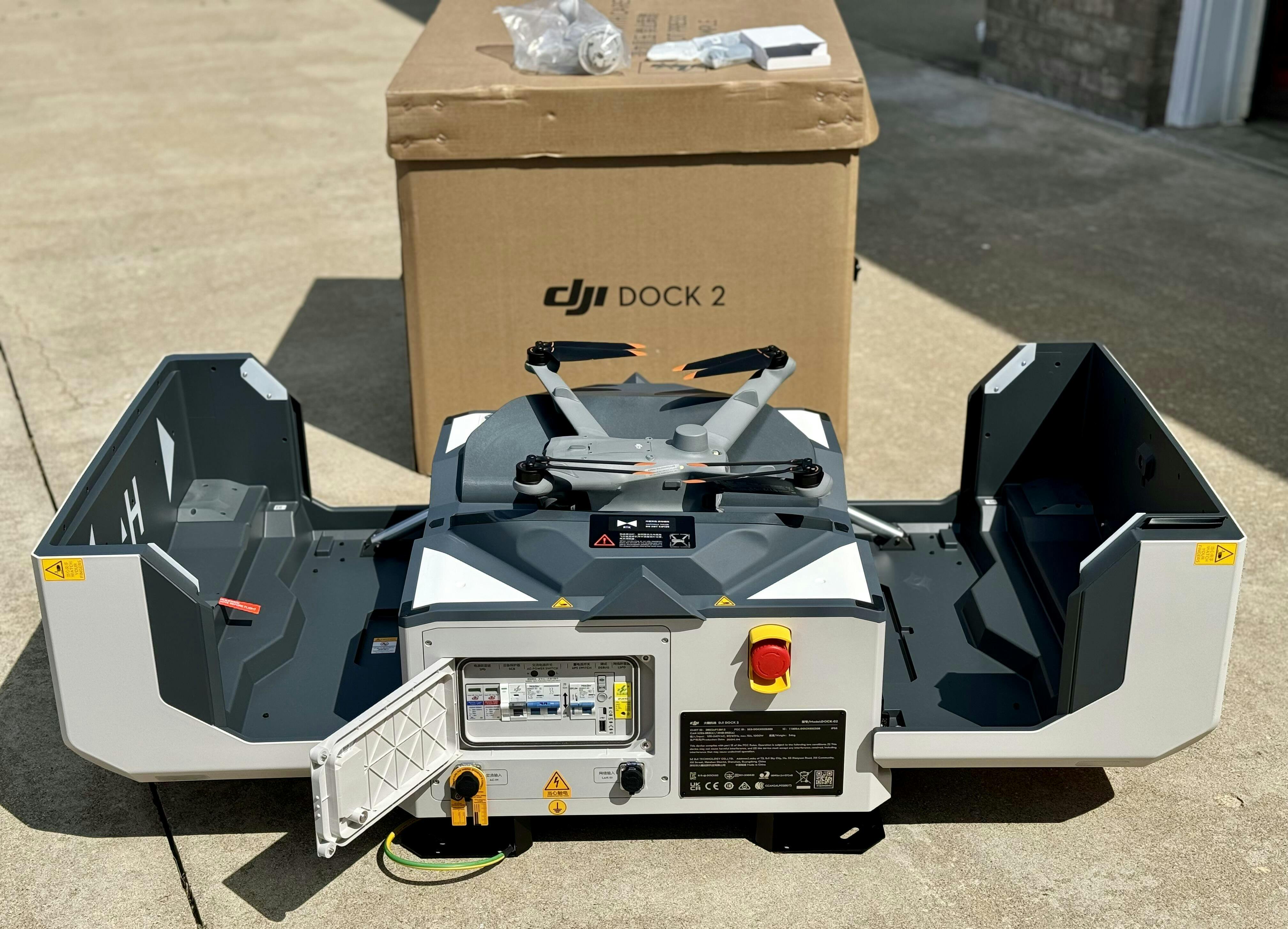

DJI Dock 2: Seamless Deployment Across All Conditions
Portable and Cost-Effective: Weighing just 35kg, the DJI Dock 2 can be carried and installed by two people, making it highly mobile and reducing setup costs.
Swift Site Assessment: Equipped with vision sensors, the aircraft can scan its environment prior to deployment, ensuring strong GNSS signals for optimal location selection, thus speeding up the process.
Robust Weather Resistance: With an IP55 rating for dust and water resistance, Dock 2 is built to operate continuously, even in demanding weather conditions.
Real-Time Environmental Monitoring: Dock 2 is outfitted with sensors that monitor rainfall, wind speed, and temperature, allowing for immediate adjustments or cessation of flight tasks via DJI FlightHub 2 based on weather conditions.
Enhanced Landing Precision: Advanced image recognition technology allows the aircraft to detect markers on the landing pad for accurate positioning, complemented by the Dock’s new slide-ramp design which ensures precise landings.
Reliable Power Backup: A built-in battery keeps the Dock 2 operational for over five hours independently, providing ample time for the drone to return and land safely.
Low Maintenance Requirements: The DJI Dock 2 needs maintenance only about every six months, minimizing upkeep.
Alerts for Irregularities: Stay informed with email updates from DJI FlightHub 2 about any task failures or emergencies related to the DJI Dock 2 or the aircraft.
How Drone In-a-Box Systems Work
Drone in-a-box technology has ushered in a significant advancement in the area of autonomous UAV operations, composing systems where drones are housed, charged, deployed from, and returned to a self-contained — often portable — unit.
‘Unit’ is synonymous with ‘box’ — serving as both the drone's home base station and automated service mechanism. Compared with its counterparts, drone in-a-box autonomous UAVs require minimal human drone operation as the technology itself facilitates health checks, charging, and data uploading, among other otherwise manual tasks.
Rugged, Reliable, Recharged
DJI Dock 2 is IP55 dust and water-resistance rated, allowing it to operate in the extreme climates and environments. Each drone can operate in the sky for a maximum of 50 minutes. It's compact size also means operators can take the Dock 2 to new locations that were previously inaccessible due to its large size. It's environmental monitoring system, an important feature of the Dock 2, uses sensors to detect rainfall, wind speed, and temperature, providing real-time weather feedback and monitoring. These sensors enable the Dock 2 to offer timely warnings and even terminate flight tasks through DJI FlightHub 2. Thus significantly reducing flight risks and preserving the safety of your drone and Dock 2.
Consider the following three key features Dock 2:
Accessible cloud management: The integration with DJI FlightHub 2 provides comprehensive cloud-based control, allowing for detailed mission planning, real-time monitoring, and data management from anywhere, at any time.
Robust design for all conditions: Built to withstand challenging weather conditions, Dock 2 is IP55 ingress protection rated and offers protection against rain and dust, ensuring reliability and durability across various environments.
Fast charging capabilities: Fast charging equals a fast turnaround. The M3D and M3TD can wirelessly charge on the Dock 2 from 20 to 90 percent in just over a half hour, remarkable charging speeds for such a mobile and compact unit.
Steady and cost-effective remote operations
DJI Dock 2 can be programmed to complete missions automatically, but at any time, operators can control the flight and gimbal angle from anywhere. Internal and external fisheye lenses provide real-time conditions within and outside the dock, allowing operators to remotely observe weather conditions, environmental circumstances, and takeoff and landing situations. In the hangar, the drone’s battery can be wirelessly charged to 90% from 20% in approximately 32 minutes.
Minimum support, even during emergencies
DJI Dock 2 only requires maintenance every six months. If there is a power outage, it can operate independently with the built-in battery for 5 hours, leaving sufficient time for the drone to return and land. Also, DJI FlightHub 2 immediately sends email notifications if a flight task fails, allowing operators to trace and troubleshoot accurately.
High-precision aerial missions with new DJI Matrice 3D/3TD
An all-new DJI Matrice 3D/3TD drone is designed to meet the high-standard operational requirements for DJI Dock 2. Both drones feature integrated RTK antennas, omnidirectional obstacle sensing, and automatic obstacle bypass, enhancing the success rate of each automatic flight task. They also boast a 50-minute maximum flight time, a 6-mile operating radius, an IP54 rating for wind and dust, and can recharge for 400 cycles.
(Included in our Kit) Matrice 3D is designed for automatic mapping and surveying missions. It features a tele camera (1/2-inch CMOS, 162mm format equivalent, 12MP of effective pixels) and a wide camera (4/3 CMOS, 24mm format equivalent, 20 MP of effective pixels) with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks.
(Optional) Matrice 3TD is designed for security and inspection operations. It features the same tele camera as the Matrice 3D but a different wide camera (1/1.32-inch CMOS, 24mm format equivalent, 48MP of effective pixels). It also includes an additional infrared camera (40mm format equivalent, 640x512 resolution for normal mode and 1280x1024 resolution for UHR infrared image mode, 28x digital zoom) that can depict both visible light and thermal images.
DJI DOCK 2
Easy Operation, Superior Results
The more capable yet noticeably smaller DJI Dock 2 deploys Matrice 3D or 3TD drones with ease and security. Dock 2 is lightweight, offers high-level operation capabilities, and has cloud-based intelligent functions that bring efficiency and quality to unattended operations.
The all-new DJI Matrice 3D/3TD is specifically designed for DJI Dock 2. Matrice 3D is equipped with both a tele camera and a wide-angle camera with a Mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks. Matrice 3TD, outfitted with a wide-angle camera, a tele camera, and an infrared camera, can depict both visible light and thermal images, making it suitable for security and inspection operations.
DJI Matrice 3D
Wide-Angle Camera
4/3 CMOS
24mm Format Equivalent
20MP Effective Pixels
Mechanical Shutter
Tele Camera
1/2-inch CMOS
162mm Format Equivalent
12MP Effective Pixels
DJI Matrice 3TD
Wide-Angle Camera
1/1.32-inch CMOS
24mm Format Equivalent
48MP Effective Pixels
Tele Camera
1/2-inch CMOS
162mm Format Equivalent
12MP Effective Pixels
Infrared Camera
40mm Format Equivalent
Normal Mode: 640×512@30fps
UHR Infrared Image Mode: 1280×1024@30fps
28x Digital Zoom
Easy Deployment, Ready To Go
Lightweight Design
DJI Dock 2 is 75% smaller and 68% lighter than its predecessor and is easily transportable with just two individuals, which makes for flexible installation and reduces installation costs.
Efficient Site Evaluation
Before deployment, the aircraft can detect the surrounding environment using vision sensors and quickly determine whether the area has strong GNSS signals. This new vision-based evaluation markedly accelerates site selection, reducing the required time from five hours to twelve minutes or less.
Rugged, Reliable, Recharged
IP55 Dustproof and Waterproof
DJI Dock 2 is designed with safeguarding in mind. With an IP55 dust and water resistance rating, Dock 2 can operate steadily for extended periods even in harsh climates and environments.
Integrated Environmental Monitoring System
DJI Dock 2 integrates multiple sensors, including rainfall, wind speed, and temperature gauges, to perceive real-time weather changes. In conjunction with online weather forecasting, it can provide timely warnings or terminate flight tasks using DJI FlightHub 2 to effectively reduce flight risk.
Improved Landing Stability
With next-gen image recognition technology, the aircraft accurately identifies positioning markers on the landing pad. Additionally, the landing pad's new slide-ramp centering design further facilitates precise landing.
Built-in Backup Battery
In the case of an unexpected power outage, DJI Dock 2 can continue to operate independently for over five hours with the built-in backup battery, leaving sufficient time for the aircraft to return and land.
Six-Month Maintenance Interval
With its high level of protection and reliability, DJI Dock 2 only requires maintenance approximately every six months, effectively controlling human resource costs.
Abnormal Condition Notifications
If DJI Dock 2 and the aircraft encounter task failures or emergencies, DJI FlightHub 2 will immediately send email notifications. This allows operators to accurately trace and troubleshoot problems based on the provided information.
Superior, Comprehensive Performance
Thanks to its powerful operation capabilities, DJI Matrice 3D/3TD meets the requirements of high-standard operations.
IP54 Dustproof and Waterproof
50 Mins Max Flight Time
6-Directional Obstacle Sensing System
10 km Max Effective Operating Radius
400 Battery Cycles
Integrated RTK Module ±3cm Positioning Accuracy
Steady Operation, Uncompromised Efficiency
Quick Takeoff
DJI Dock 2 integrates dual RTK antennas, allowing the aircraft to obtain accurate RTH location information without waiting for the RTK data to converge. It also performs a complete propeller inspection and takeoff in as short a time as 45 seconds, quickly entering operational status.
Quick Charging
DJI Dock 2 charges the aircraft from 20% to 90% in just 32 minutes for efficient powering for consecutive operations.
Dual-Camera Monitoring
DJI Dock 2 features an internal and an external fisheye camera to achieve real-time display. Close monitoring within and outside the dock allows the operator to remotely observe weather conditions, environmental circumstances, and the aircraft's takeoff and landing.
Cloud-Based Operation, Maximum Control
Cloud Mapping
After the aircraft completes its flight task, DJI FlightHub 2 generates high-precision 3D models based on the collected flight data, authentically restoring the operating environment. These models can be annotated, measured, and downloaded.
Flight Route Editor
Utilizing high-precision 3D models, operators can conduct visual flight route editing from a first-person perspective and preview simulated imaging results. This facilitates intuitive and efficient operations and enhances flight route planning and accuracy.
AI Spot-Check
Frame a specific area in the 3D model, and the aircraft will automatically compare the area to be captured with the framed area in subsequent automated operations. This actively adjusts the camera's angle to ensure accurate capture of the same area across multiple flights.
Flyto Tasks
DJI FlightHub 2's FlyTo tasks utilize high-precision 3D models to automatically plan the optimal flight route. Before an urgent task, the operator only needs to click on the subject, and the aircraft will fly to the destination via an efficient and safe route.
Live Flight Controls
Based on DJI FlightHub 2 or a third-party cloud platform, even if DJI Dock 2 is deployed in a remote region, the operator can still control the flight and gimbal angle via keyboard and mouse.
Obstacle Bypass
When performing automatic flight tasks, the aircraft utilizes omnidirectional obstacle sensing and automatic obstacle bypass functions to enhance the success rate of flight tasks.
Open Ecosystem, Extensive Capabilities
Third-Party Payloads
Add even more functionality, connect to third-party payloads such as loudspeakers and spotlights via the aircraft's E-Port, and remotely control added payload via DJI FlightHub 2. Additionally, the aircraft's E-Port Lite supports connection to a parachute for increased flight and personnel safety.
Edge Computing
DJI Dock 2 has an edge computing expansion interface that enables the pre-processing of media files and more to improve operational efficiency further.
Private Employment With Cloud API
Tailor a customized management system for DJI Dock 2 with Cloud API or quickly connect it to a third-party cloud platform, facilitating efficient and convenient private deployment.
Cloud-to-Cloud Coordination
Through DJI FlightHub 2's FlightHub Sync function, users can easily link it to a third-party cloud platform for flexible management of operation data.
DJI Terra API
With the DJI TerraAPI, users can now integrate the powerful mapping capabilities of DJI Terra into their own dock management systems. This enables automated 2D/3D reconstruction and customized photo mapping workflows, allowing the operation results of DJI Dock 2 to better meet the needs of a wide variety of industry applications.
Flying Ag Dock 2 With Matrice 3D Series full package includes:
