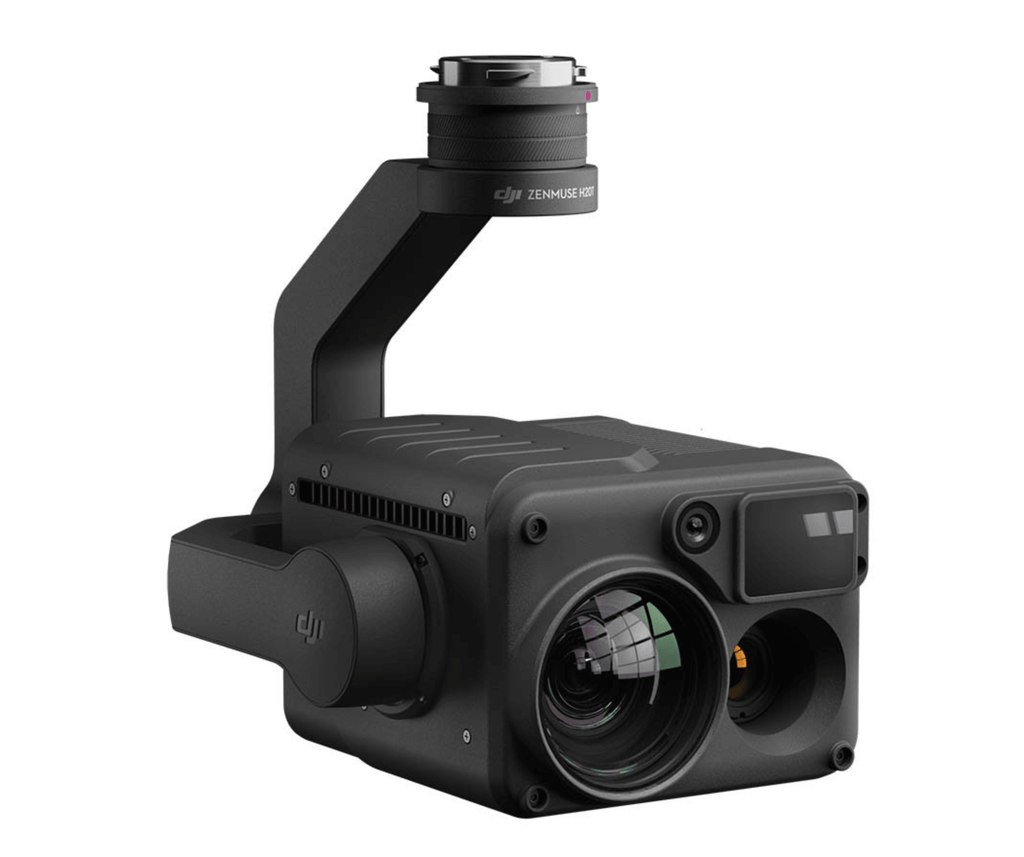

Introducing DJI's groundbreaking Zenmuse H20T, a pioneering hybrid sensor solution that elevates your aerial capabilities to unprecedented heights. This "T" model, a remarkable evolution of the Zenmuse H20, incorporates a fourth sensor – a cutting-edge 640x512 thermal sensor, revolutionizing its utility.
In addition to this remarkable thermal sensor, the H20T encompasses the same set of sensors found in the H20, including a 20 MP zoom camera boasting a 23X hybrid optical zoom, a 12 MP wide camera equipped with a 1/2" CMOS sensor, and a laser rangefinder with an astonishing range of up to 3/4 miles. This formidable quartet of sensors is tailor-made for the DJI Matrice 300 RTK, ensuring efficiency and versatility that's unparalleled in the realm of unmanned applications.
(1) H20T Gimbal & Camera
(1) SanDisk Extreme microSD Card 32GB
(1) Storage Case
(1) Lens Cleaning Cloth
Here's a closer look at the sensors within this all-in-one solution:
- Wide Camera: 12 MP, 1/2.3" CMOS, 24mm Focal Length, and an expansive 82.9° DFOV.
- Zoom Camera: 20 MP, 1/1.7" CMOS, offering a 23X Hybrid Optical Zoom with a remarkable 200X maximum zoom capability.
- Laser RangeFinder: Capable of measuring distances up to 3/4 miles (1200 meters).
- Radiometric Thermal Camera: Sporting an impressive 640x512 resolution and a 30Hz refresh rate, providing a generous 40.6° DFOV.
The Zenmuse H20T empowers operators with high-magnification zoom once a target is recognized using the wide camera view. The laser rangefinder is a game-changer, offering mission-critical distance and location information, indispensable for applications like search and rescue and inspection.
Laser ranging can accurately measure object distances within the measurement range of up to 3/4 miles, displaying vital data such as the object's distance from the aircraft, relative height, and GPS position.

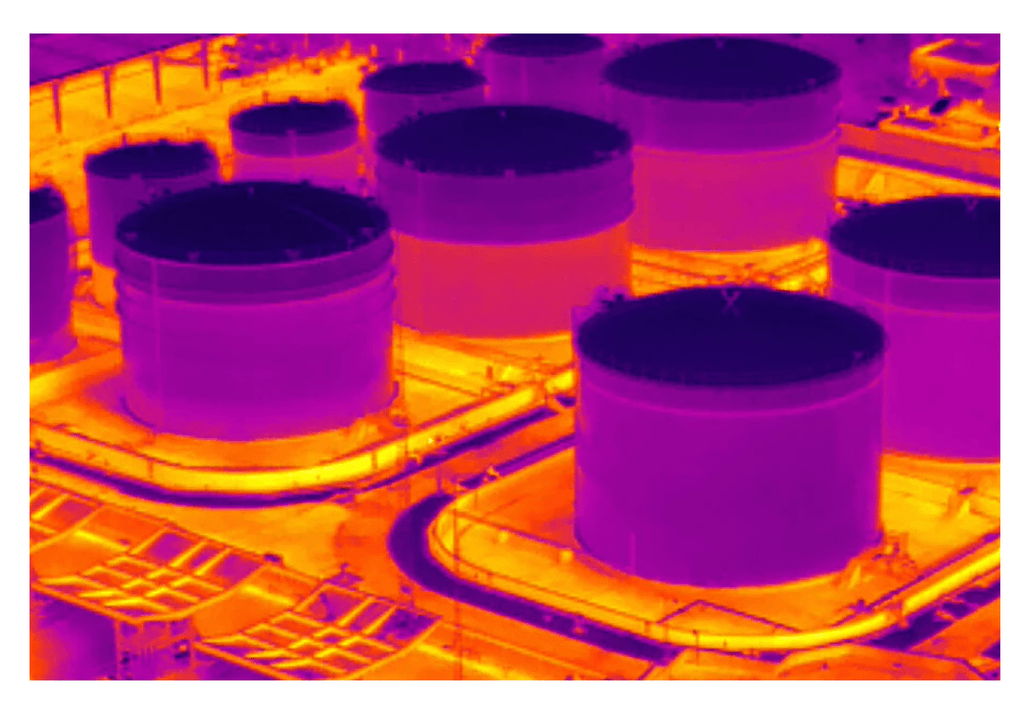

The H20T's radiometric thermal imaging capabilities offer accurate temperature management functionality. Operators can take real-time, precise temperature readings and monitor temperatures of subjects on job sites or critical infrastructure assets. Features like Spot Metering and Area Measurement facilitate temperature assessment, allowing users to tap a point on the screen to obtain instant surface temperature readings or draw an area to display the lowest, highest, and average temperatures.
Thermal images captured using the Zenmuse H20T are saved in R-JPEG format, embedding temperature data and information. The DJI Thermal Analysis Tool enables precise temperature measurement and report preparation, along with the adjustment of imaging parameters like Emissivity and Reflected Temperature.
In addition to these remarkable features, the Zenmuse H20T boasts several other advantages:
- IP44 Rating
- Operating temperature range from -4°F to 122°F
- Active image stabilization and Electronic Image Stabilization (EIS)
- Night Scene Mode
- Temperature Alarm (Temp Alarm)
- Color Palettes
- Gain Modes
- R-JPEG Images
The Zenmuse H20T also offers an array of intelligent camera functions:
- Click to Aim: Easily focus on points of interest by double-clicking, eliminating the need for manual gimbal adjustments.
- Smart Track: Automatically identifies and tracks moving subjects such as people, vehicles, and boats, continuously acquiring their dynamic location.
- High-Res Grid Photo: Capture an overview photo with the wide camera sensor, followed by a series of 20 MP images using the zoom camera, enabling detailed observation of the subject.
- Night Scene: Equipped with an IR filter, Night Scene Mode enhances vision in low-light environments, akin to the capabilities of DJI's Zenmuse Z30 camera with IR cut.
