2023 FlyingAg Mavic 3M Ag Kit

  • Sale
  • Regular price $4,499.00
Shipping calculated at checkout.



Effective aerial surveying needs to see the invisible. That's why Mavic 3 Multispectral has two forms of sight. It combines an RGB camera with a multispectral camera to scan and analyze crop growth with total clarity. Agricultural production management requires precision and data, and Mavic 3M delivers both

Over the years we continue working with farmers and other industry professionals to provide the best "ready to fly" kits.  This new system is without a doubt the latest and greatest!!!

Top Features Include:

  • A 20 MP wide-angle camera

  • 4/3 CMOS sensor with large 3.3μm pixels

  • Rapid 0.7-second interval shooting

  • Intelligent Low-Light Mode

  • Mechanical shutter (prevents motion blur and supports rapid 0.7-second interval shooting)

  • 43-min flight durations let you cover more ground each mission.

  • Fast charge batteries with 100W charging hub, or directly charge the drone with 88W fast charging. Charging Hub: 100W, Aircraft 88W

  • Mavic 3M also includes a four-lens multispectral camera

  • Mavic 3M also comes with an RTK module that enables a centimeter-level positioning

  • DJI Care Enterprise Basic 1-Year Plan


We've test flown your new ship before we shipped it to you but PLEASE review the FAA rules and regulations about safe use of your drone.  We also highly recommend reading the owners manual and viewing the website www.knowbeforeyoufly.org before your first flight.

Multispectral + RBG imaging system

Highly integrated imaging system

Newly upgraded imaging system with one 20MP RGB camera and four 5MP multispectral cameras (green, red, red edge, and near infrared). Enables applications such as high-precision aerial surveying, crop growth monitoring, and natural resource surveys.

5MP Multispectral Camera

Near-infrared (NIR) 860 nm ± 26 nm

Red edge (RE) 730 nm ± 16 nm

Red (R) 650 nm ± 16 nm

Green (G) 560 nm ± 16 nm

RGB camera characteristics

4/3 CMOS - 20MP Image Sensor

1/2000s - Fastest mechnaical shutter speed

0/7s - High speed burst when RGB camera is used

Sunlight Sensor

The built-in sunlight sensor captures solar irradiance and records it in an image file, allowing for light compensation of image data during 2D reconstruction. This results in more accurate NDVI results, as well as improved accuracy and consistency of data acquired over.


Accurate images that capture every pixel

Mavic 3M with RTK module for centimeter-level positioning. Flight control, the camera, and the RTK module sync in microseconds to accurately capture the location of each camera's imaging center. This enables Mavic 3M to do high-precision aerial surveying without using ground control points.

Efficient and reliable battery life

43 minutes Cruise Time

200 hectare - A single flight can complete mapping operations over an area of 200 hectares.

100W Battery Charging Hub | High-efficiency fast charging

88W fast charging | Aircraft



Stable signal, smooth image transmission

The O3 transmission integrates two transmitting signals and four receiving signals to support 15km ultra-long transmission distances.



Omnidirectional obstacle sensing, terrain-follow aerial surveying

The aircraft features multiple wide-FOV vision sensors that accurately detect obstacles in all directions for omnidirectional obstacle avoidance. The terrain-follow aerial surveying can be easily performed in steep-slope landscapes.

Applications

Orchard mapping

Mavic 3M allows terrain-follow aerial surveying of orchards, even on sloped landscapes. Together with DJI Terra or DJI SmartFarm Platform to reconstruct high-resolution orchard maps, automatically identify the number of trees, distinguish trees from other obstacles or objects, and generate three-dimensional operation routes for agricultural drones, making operations safer and more efficient.

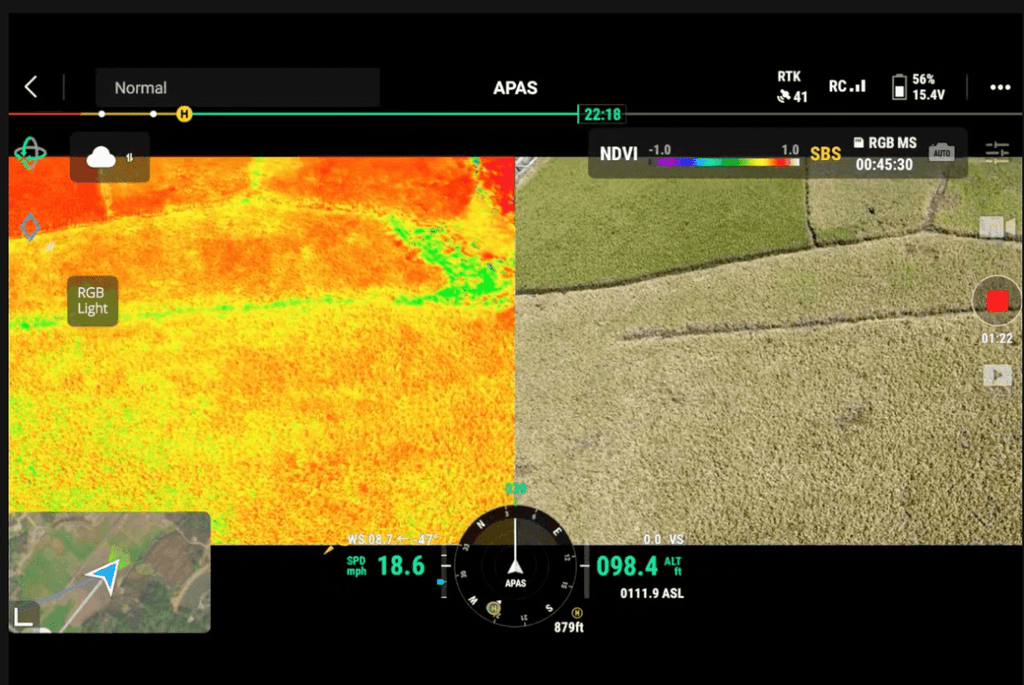

Guide variable rate applications

For rice fertilization, cotton growth regulation, and potato foliar fertilizer spraying, the Mavic 3M is used to obtain multi-spectral images of crops. DJI Terra or the DJI SmartFarm Platform can then generate NDVI and other vegetation indices maps, capturing differences in crop potential and generating prescription maps that allow agricultural drones to execute variable-rate application. This ultimately allows users to reduce costs, increase yield, and protect the environment.

Intelligent field scouting

The Mavic 3M can carry out automatic field scouting. The field scout images can be uploaded to the DJI SmartFarm Platform in real time through a 4G network. It can find abnormalities, such as emergence deficiencies, weed pressure, and crop lodging in a timely manner. It can also conduct intelligent analyses, such as cotton seedling identification and rice production testing, using AI identification for real-time sharing of crop growth information, guidance of agronomic activities, and easy management of 70 hectares of farmland by one person.

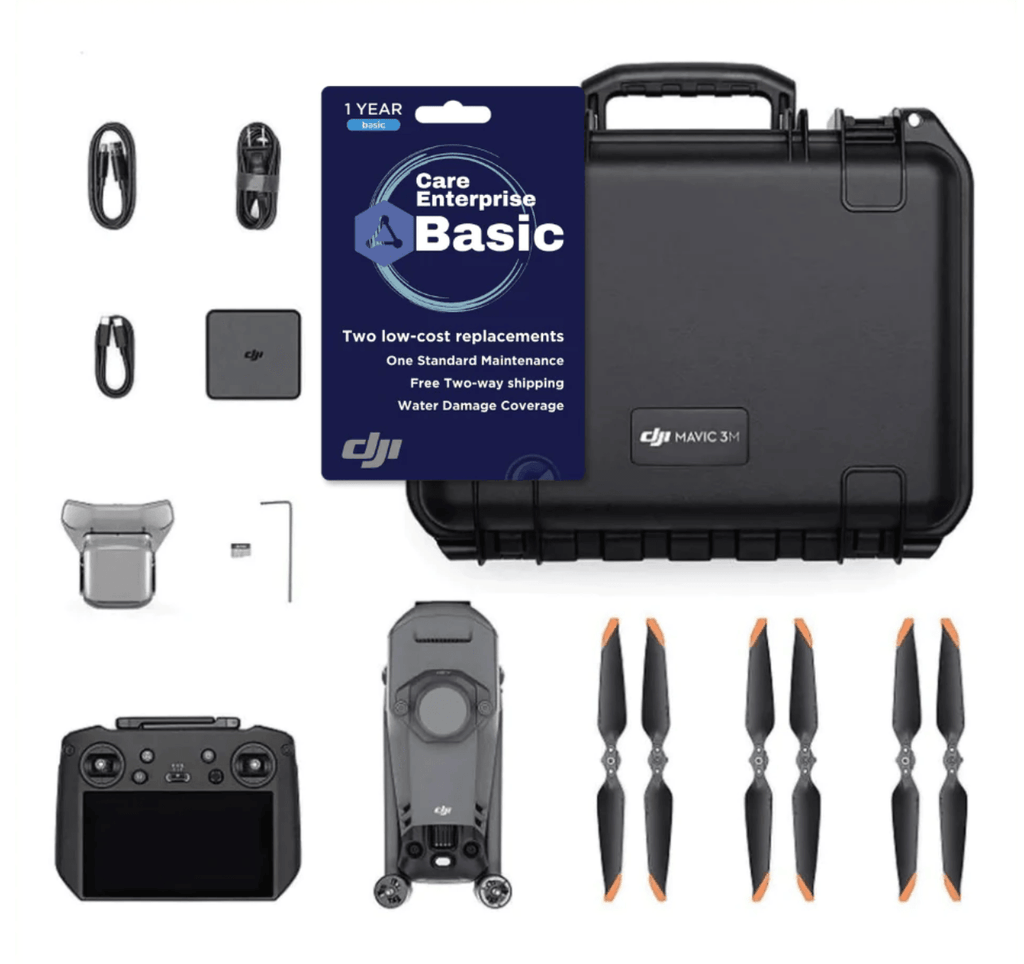

What's in the box??

  • 1x Mavic 3M Aircraft
  • 3x Mavic 3 Intelligent Flight Battery
  • 1x 100W Charging Hub
  • 1x microSD Card 64GB
  • 1x Gimbal Protector
  • 3x Mavic 3 Enterprise Series Propellers (Pair)
  • 1x RC Pro Enterprise
  • 1x Screwdriver
  • 1x USB-C Power Adapter (100W)
  • 1x 100W Power Adaptor AC Cable
  • 1x USB-C Cable
  • 1x USB-C to USB-C Cable
  • 1x Protector Case
  • 1x Installed Custom Graphics
  • 1x Custom GPC Replacement Foam kit



User Data Security


DJI is driven by the relentless pursuit of making complex technology accessible to all. Nowhere is this commitment more visible than in how they help commercial, civil, and government users around the world to find innovative ways to use their technology, bringing value throughout a wide range of industries. Given the unique role drones play as a data capture device, DJI understands how important data security is to commercial, civil and government customers. That’s why DJI gives users control over the data they generate. They buttress this commitment by providing in-depth information on how DJI drone platforms protect the data of customers, and outlining the strategies and processes they use to continually improve information security.
You Control Your Data

DJI will not access any user data unless the user grants DJI permission to do so. Users can choose to grant or revoke permissions anytime in the "Network Security Mode" settings. Such permissions include access to device information, flight records, device logs, approximate location information, user experience improvement program information, and whether DJI can share your device location with third-party map service providers in order to display your location on the map. You can enable "Local Data Mode" to use your device completely offline. In this case, you do not need to log in to your DJI account. Installer packages to upgrade your device can be downloaded directly from the DJI website. Soon, we will release features such as custom offline maps and offline import of certificates to unlock restricted zones.
Data Encrypted for Enhanced Security

Data transmitted between the drone and the controller on the ground is protected by the AES-256 encryption algorithm. The communication between the DJI Pilot app and the server is also protected by HTTPS or WebSockets over SSL/TLS (WSS) protocol to prevent hijacking by third parties.
Secure Device Media Storage

DJI Mavic 3 Enterprise drones support a password protection mechanism for onboard data storage to guarantee the security of sensitive images and resources. When the password function is enabled, data stored in the SD card or onboard storage can be accessed only after the user-defined password is provided. The user-defined password is not shared with DJI, which means DJI cannot retrieve this password if you forget it.
